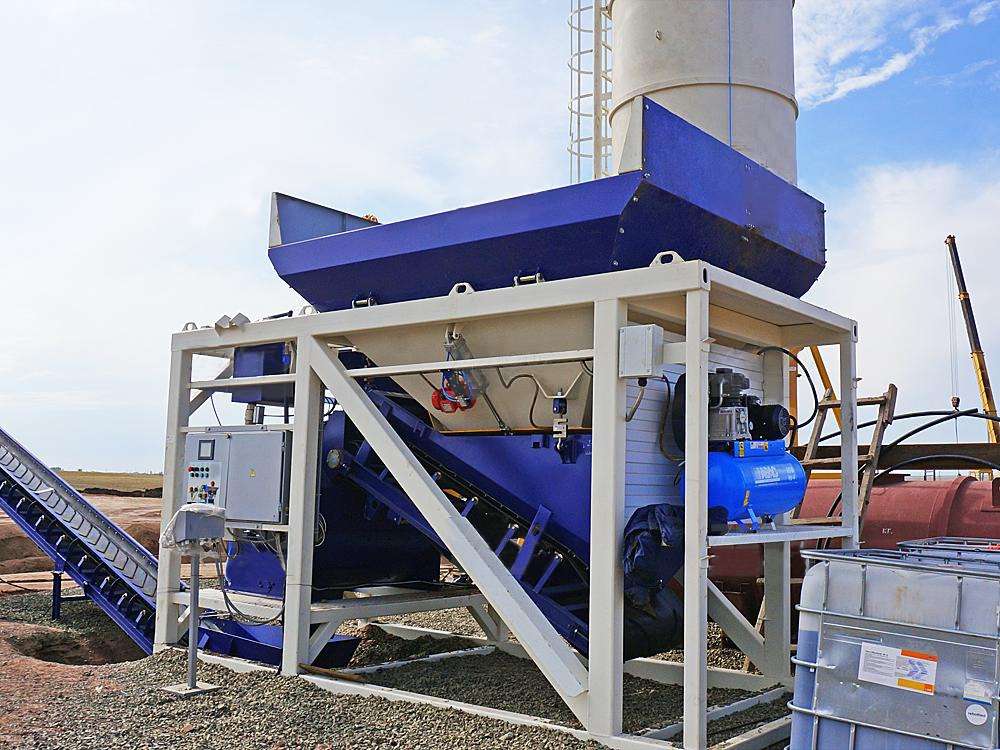

Portable Concrete Plant
The Portable Concrete Plant is designed to produce 20 cubic yards of concrete an hour – it is an ideal plant for construction companies and reinforced concrete producers. The plant is assembled where concrete is needed. The plant does not require a concrete foundation or a loading ramp, it may be mounted on practically any hard surface, and even indoors with a ceiling higher than 4.5 yards. Installation and connection of the plant takes two hours, after which you can begin to produce concrete. All you need is to connect water, electricity, other equipment and load the hopper with inert materials (crushed stone and sand). Easy management and automatic computer batching allows you to produce high quality concrete, even at the construction site. The small dimensions allow the plant to be transported to another object or construction site in a conventional cargo van or on a truck trailer. Our portable concrete plant is the best choice for $55000
Features and advantages of portable concrete plant
High efficiency
Computer control and small dimensions make it possible to produce high-quality concrete anywhere (at a concrete production enterprise or construction site).
Easy transportation
Due to its small size, the plant can be transported between objects in a regular cargo van or on a truck trailer.
Easy operation
Due to the computer control system, the plant is managed by one operator. Concrete composition options can be stored in computer memory.

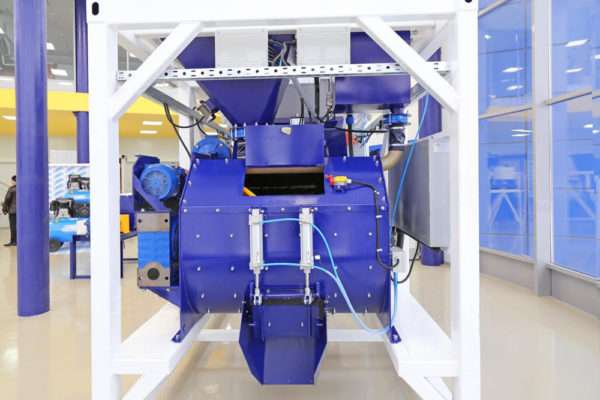

Single-shaft mixer
A reliable single-shaft mixer with a horizontal shaft allows to achieve the desired homogeneity of the concrete mix in the shortest possible time. Compares favorably with other types of mixers. Complete with a pressure-lock for discharging.

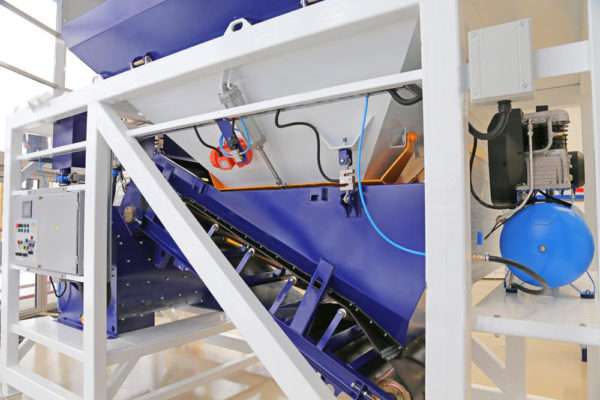

Batcher
Weight batchers with strain gauges for cement, water and chemical additives are mounted on the frame of the plant and allow to batch the components of the concrete mix with high accuracy.

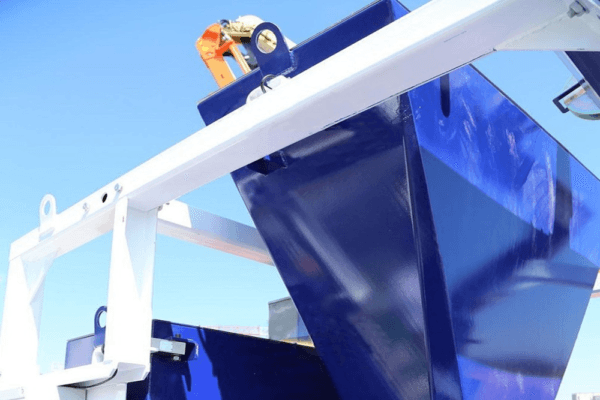

Built-in double batching hopper

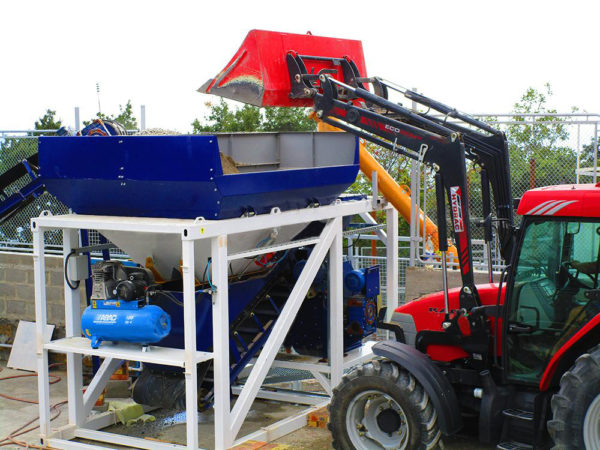

A large hopper capacity: 10 cubic yards. The double hopper is loaded on one side. This broadens the option range of places to install the plant and speeds up the mechanical loading process.
Automatic control system
Fully automated and easy to manage plant control system.

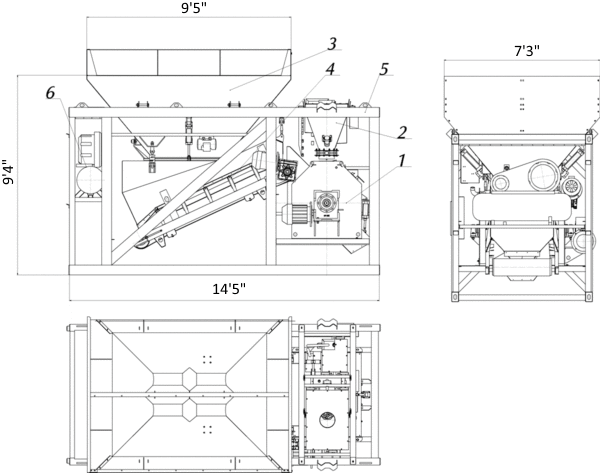

Features
Performance, cubic yards per hour 20
Volume of hoppers, cub. yards 10 (2х5)
Concrete mixer – single shaft
General power, kWt 27
Weight, pounds 8820
Transport dimensions, inches 90,5 х 90,5 х 174
Loading height of hoppers, inches 112
Maximum height in working position, inches 126
Width, inches 88
Length inches 174
High mobility. Easy and cheap transportation
Compact dimensions allow you to move a plant from one construction site to another on an average truck, on a truck trailer or a 20-foot shipping container.

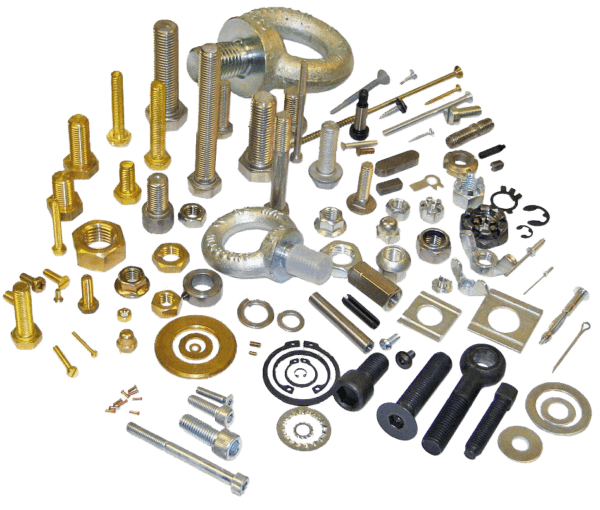

Spare parts
Quick installation
Installed in 2 hours or less
The plant is designed to minimize the cost of installation work at the construction site. The plant has been assembled, connected and tested by the manufacturer before shipment to the buyer.

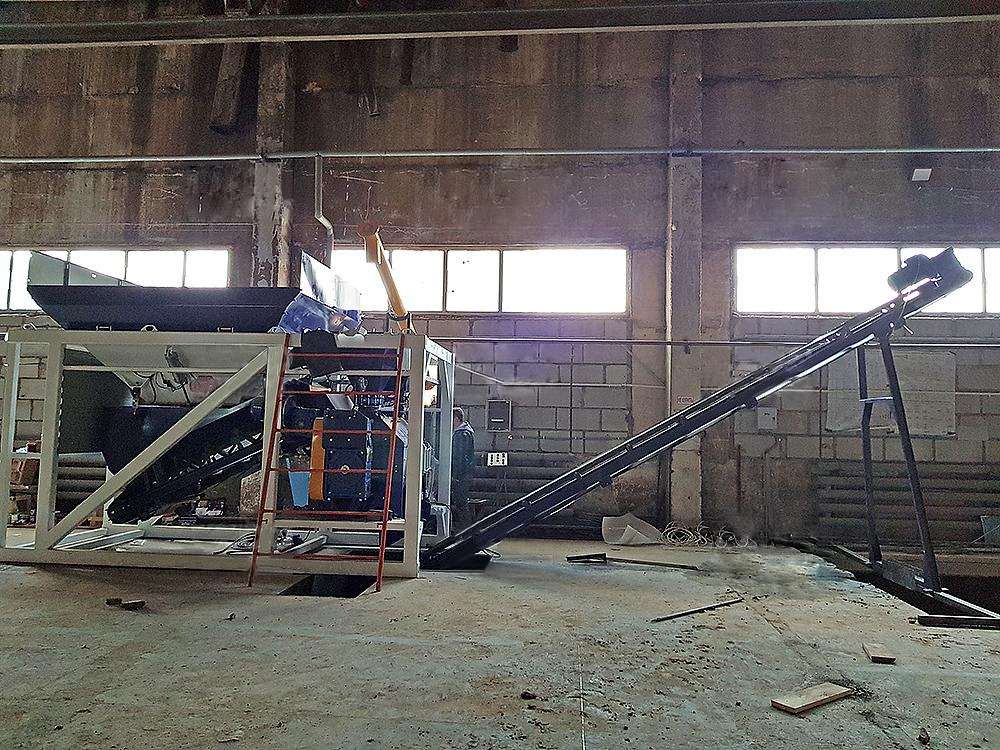

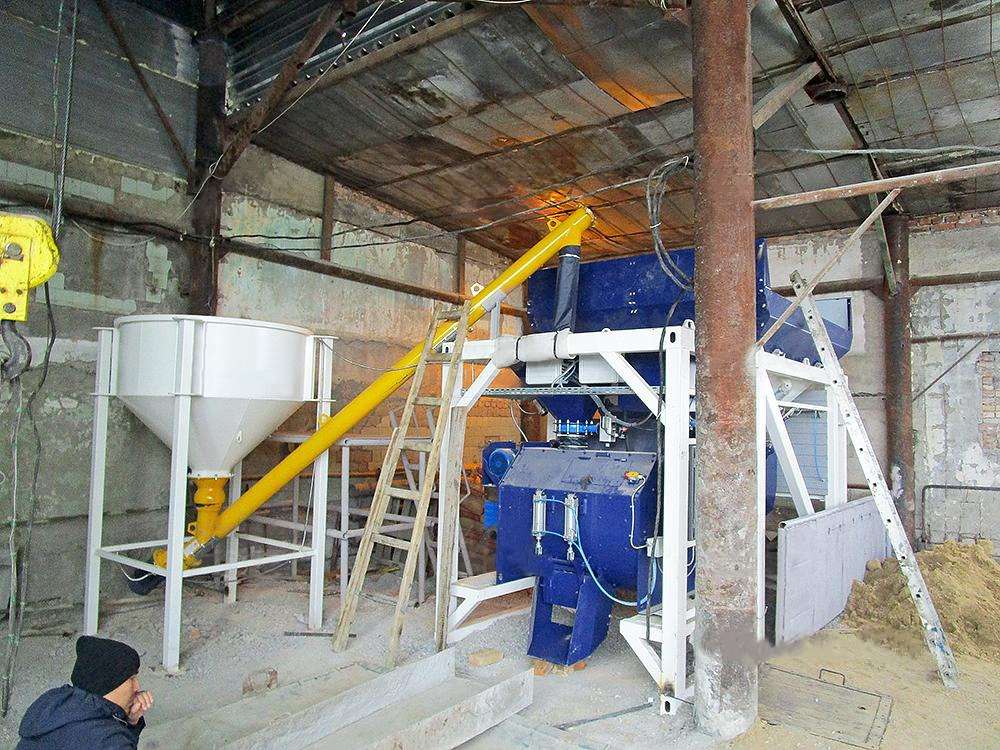

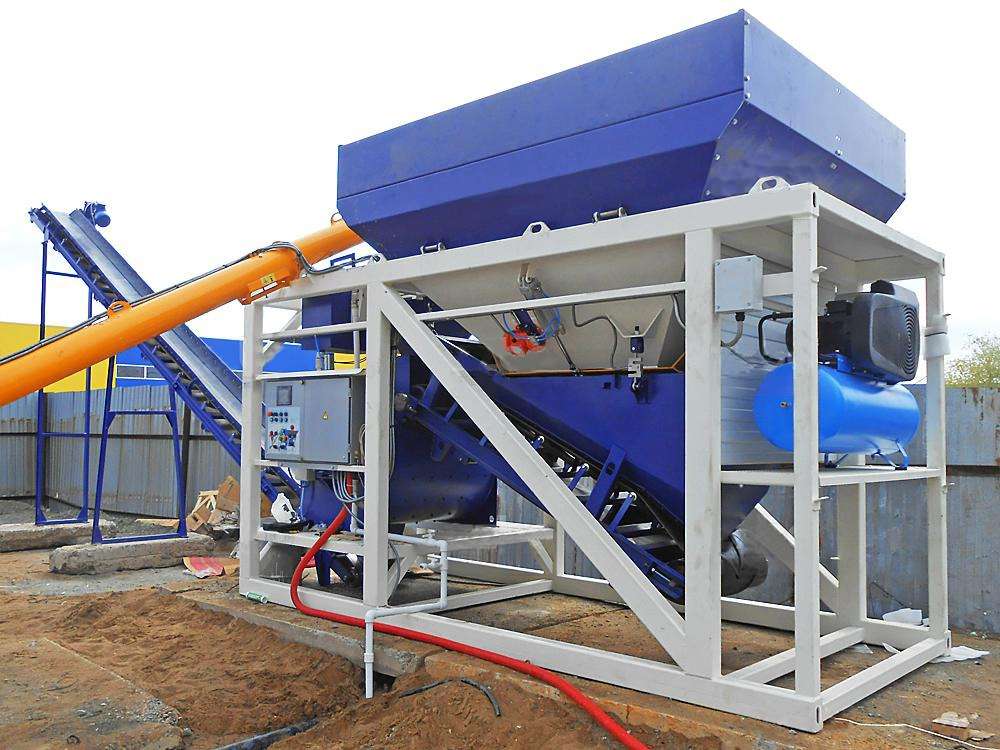

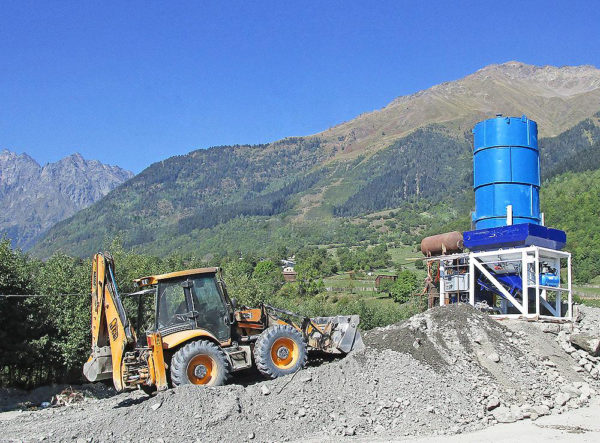

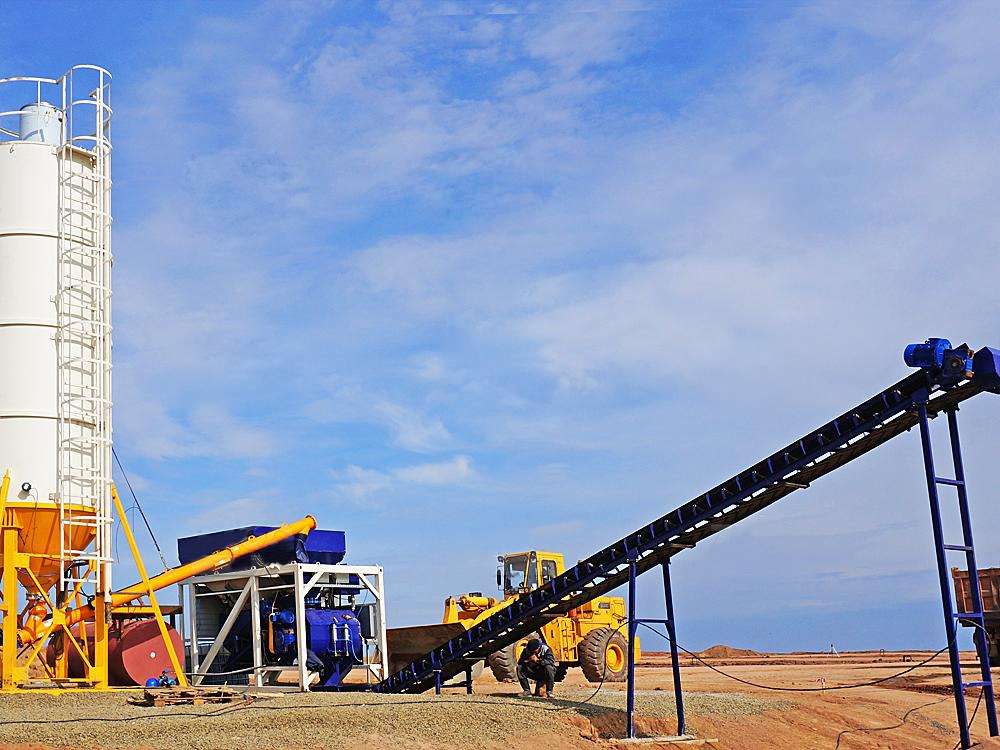

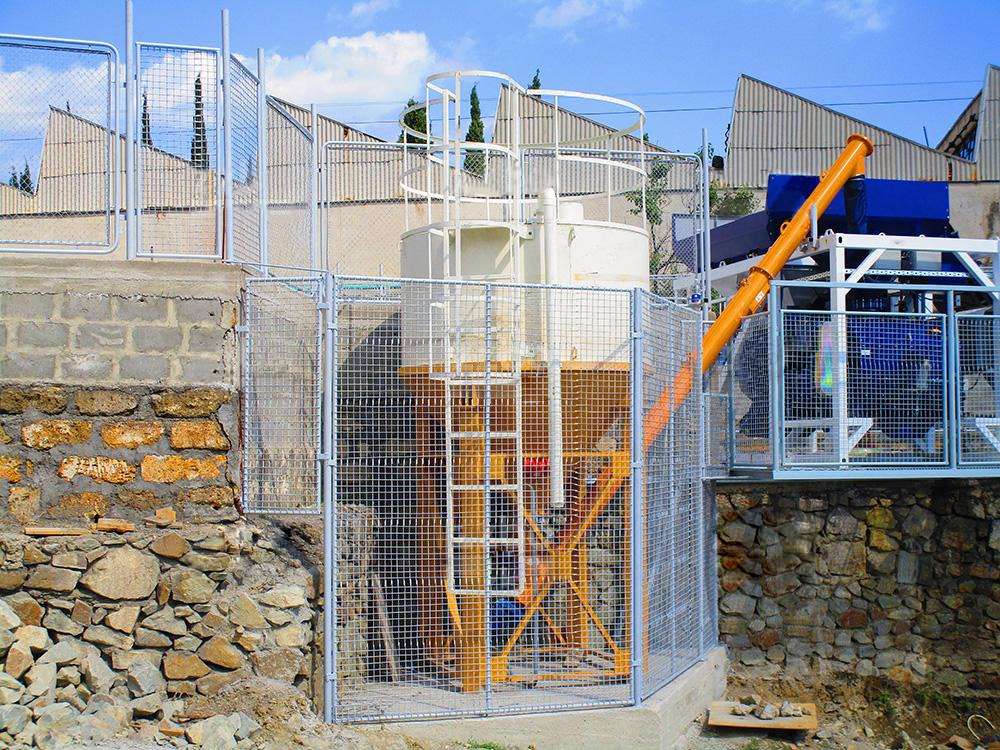

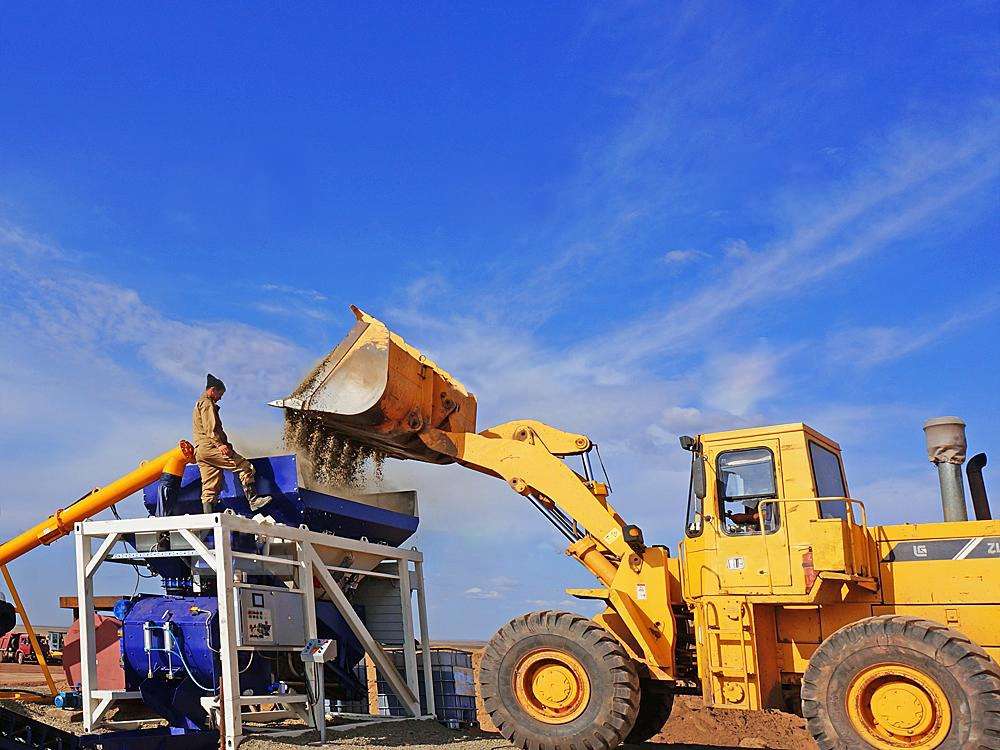

Gallery
Today a lot of portable cement batch plants have been sold and are successfully operated, proving their reliability.
Profitable investment
When buying a mini concrete plant, you can be sure that your investment will pay off in a short time. Note that a compact batching plant allows you to get high-quality concrete in the right quantity, according to the exact formula, in the right place, in line with your schedule. Making your own concrete instead of buying it ready-made, you will see from the first day that you have made a correct investment.

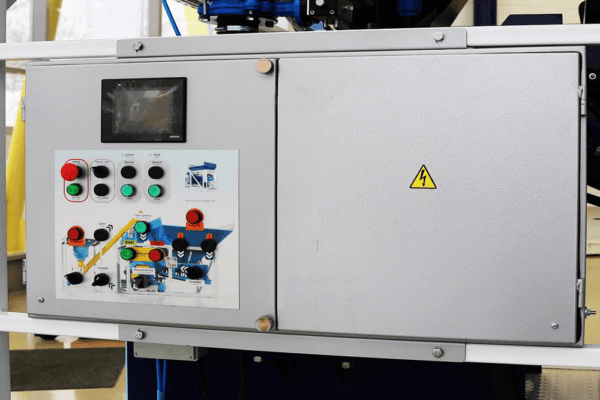

Simple and intuitive management
The management of the plant is done through a touch screen control system which manages, automatically, the whole production cycle through a software easy, intuitive and completely adaptable to the user. The management system is provided with all the parameters and functions in order to satisfy all customer’s requirements and to improve the plant performance.
Optional equipment
Can be delivered to the site, along with the plant in a 40-foot container or separately

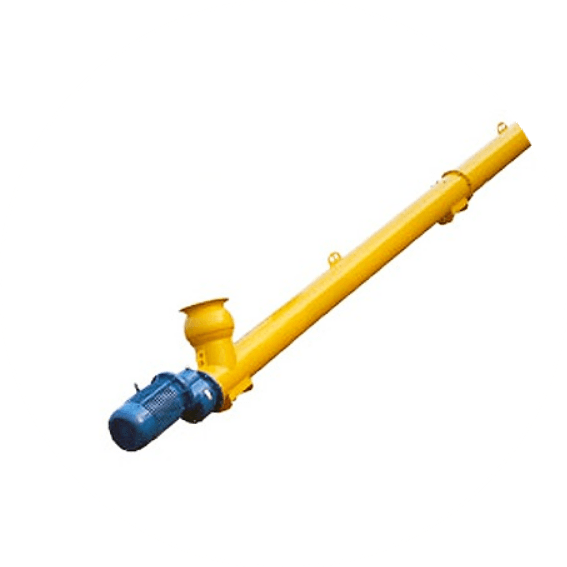

Screw for cement
Silo for cement

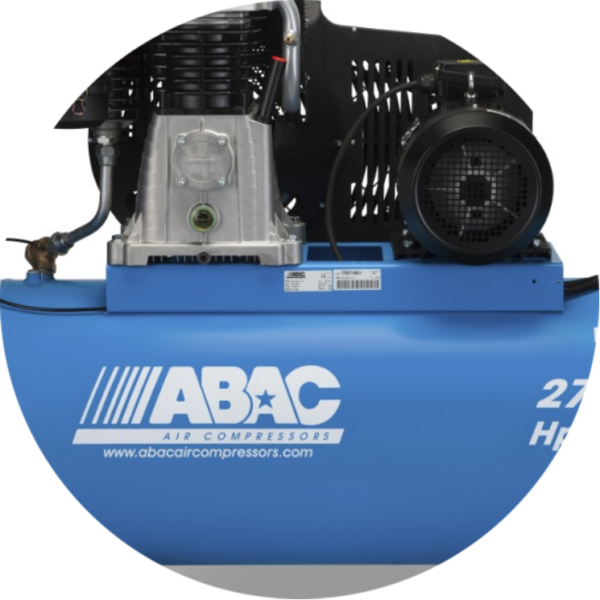

Air compressor

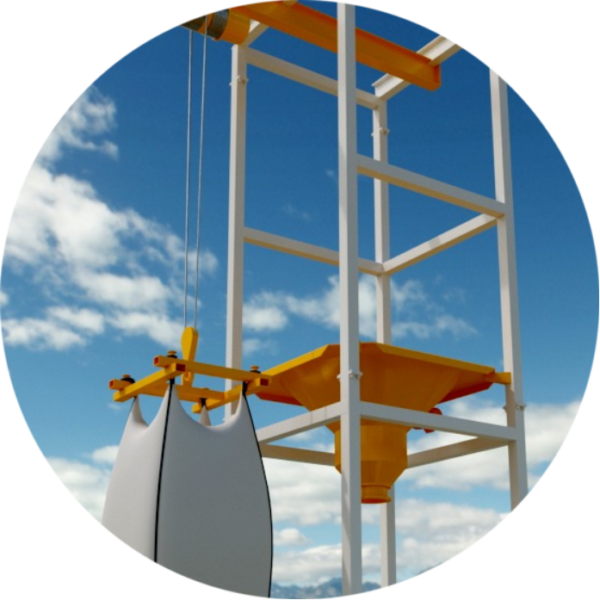

Big bag discharger with a hoist (electric winch)
Belt conveyor for loading and unloading
Big bag discharger without a hoist
